General Purpose Flame Retarded Heat Shrink Tubing

Shrinktek Heat Shrink TubingHeat Shrink Tubing

Military Grade Heat Shrink : MIL-DTL 23053/5 & DEF STAN 59-57

Aircraft & Aerospace : VG 95343 Pt5

Under Writers Lab: UL 224 VW1

SP heat shrink tubing is suitable for general use on high quality equipment requiring military (Defence Standard DEF STAN 59-97) or UL (UL 224 VW1) approval.

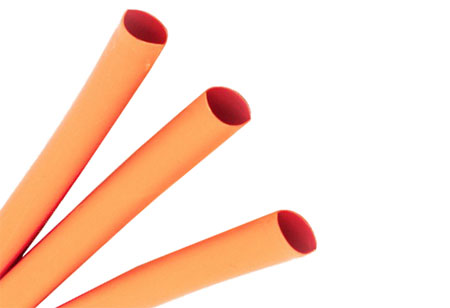

Pictured: General Purpose Flame Retarded Heat Shrink Tubing

Shrinktek SP General Purpose Flame Retarded Heat Shrink Tubing

SP heat shrink tubing with a shrink ratio of 2:1 and operating temperatures between -55 - 135 Degrees Celsius.

SP Heat Shrink Tubing - Specification

  • 135°C General Purpose Flame Retarded UL/CSA Approved Heat Shrinkable Tubing
  • Shrink Ratio: 2:1
  • Operating Temperature: -55°C to 135°C
  • Shrink Temperature : 100°C
  • Applications: SP heat shrink tubing is suitable for general use on high quality equipment requiring military/UL approvals
  • Heat shrink colours - black, clear, red, blue, green/yellow, white, yellow, grey and green
General Purpose Flame Retarded Heat Shrink Tubing - Product Range
Ordering Size (mm) Minimum Expanded Diameter (mm) Maximum Recovered Diameter (mm) Nominal Recovered Wall (mm) Standard Reel Length (m)
1.2 1.2 0.6 0.45 150
1.6 1.6 0.8 0.45 150
2.4 2.4 1.2 0.50 150
3.2 3.2 1.6 0.50 150
4.8 4.8 2.4 0.50 150
6.4 6.4 3.2 0.65 75
9.5 9.5 4.8 0.65 75
12.7 12.7 6.4 0.65 75
19.0 19.0 9.5 0.75 60
25.4 25.4 12.7 0.90 60
38.1 38.1 19.1 1.00 30
50.8 50.8 25.4 1.15 30
76.2 76.2 38.1 1.25 30
102.0 102.0 50.8 1.40 30
126.0 126.0 63.5 1.50 15
152.0 152.0 75.0 1.52 15



Adobe Heat Shrink Tubing SP : General Purpose Flame Retarded Tubing
