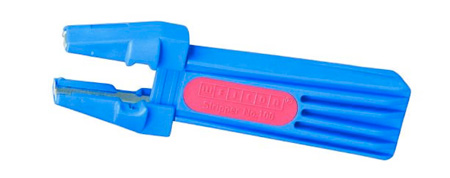

Weicon Multi-Purpose Cable / Wire Stripping Tool No.100

Weicon Low Voltage (LV) Cable Strippers

Insulation Stripping Tools

Weicon Multi-Purpose Stripper No.100



Weicon cable stripping tool No.100 is a versatile tool for cable and wire stripping, suitable for cable types and diameters as used in the complete house wiring industry. Weicon No.100 cable stripping tools allows circular and longitudinal cable stripping and needs no adjustment of the cutting depth.

Weicon stripper No.100 is well suited to multi-level cable stripping of coaxial cables in a range of 4 to 8 mm² diameter. Inner cable insulations of stranded and solid conductors of 0.5 mm² to 16mm² (20-6 AWG).

Weicon Multi-purpose Stripper No.100 Benefits:

• Allows flush cable stripping in ceiling and wall areas, e.g. in junctions and distribution boxes
• Multi-level cable stripping when connecting satellite systems and cable TV



Weicon Multi-purpose Cable & Wire Stripper No.100 Technical Data



Cable Type	Fine-wired and solid conductors with PVC insulation, coaxial cables
Field Of Use	0.5mm² to 16mm², coaxial cables 4-8mm² Ø, NYM Ø 4-13mm
Inner Blade	Not replaceable
Additional Benefits	Multi-level stripping possible
Approval/Certificates	Safety tested by TUV Nord
Material	Glass fibre reinforced polyamide
Length	135mm
Weight	74g



YouTube Video: WEICON Stripper No. 100
