Cable Knives (Hacking & Coring)

Cable Jointing Tools

Cable Knives

Boddingtons Electrical







Cable knives are used by jointers and electricians for the safe stripping and cutting of LV HV cables - typical applications include the cutting of cable insulation, sheath, jacket and conductors.



• Insulated Cable Knife With Replaceable Blades

Insulated cable knives with comfortable handle of impact resistant plastic and replaceable blades - 200mm overall knife length, 50mm knife blade length. Available with integrated blade safety guard to prevent accident or injury to LV-HV cable jointers.

Boddingtons 281510 Cable Knife

• Overall Knife Length 200mm
• Length Of Blade 50mm
• Weigh 70g
• Insulated

Boddingtons 281512 is the blade holder for 281510 Cable Knife.



Pictured: Insulated Cable Knife With Replaceable Blades - Boddingtons 281512 281510



• Insulated Cable Coring Knife

Insulated cable coring knives are suitable for single and multi-core cables with curved blade for easy cable stripping.

Boddingtons 104060 Cable Knife

• Overall Knife Length 180mm
• Length Of Blade 60mm
• Weight 175g
• Insulated


Pictured: Cable Coring Knife with Curved Blade (Insulated) - Boddingtons 104060





• Insulated Cable Knife with Ceramic Blade

Insulated cable knives with ceramic blades are fully insulated with very high cable cutting and stripping capacity.

Boddingtons 281550 Cable Knife

• Overall Knife Length 185mm
• Length Of Blade 46mm
• Insulated



Pictured: Cable Coring Knife Straight Ceramic Blade - Boddingtons 281550





• Insulated Cable Core Strippers

Insulated cable core strippers are used by cable jointers to remove insulation and sheathing from live armoured cables. Unique handle moulded in softer plastic material to provide a cushion when a hammer is used to initiate a cut in the cable sheath.

Boddingtons 120-CS Cable Knife

• Nominal Knife Lift 90mm
• Weight 165g
• Insulated

Pictured : Insulated Cable Core Strippers - Boddingtons 120-CS



• Insulated Hacking & Coring Knives

Ideal for stripping the lead sheath from paper insluated lead covered (PILC) cables - also used by DNO and Utilitiy cable jointers for the removal of the bedding compound from waveform CNE cables without damaging the soft aluminium neutral earth wires.

Boddingtons JTN-4 Cable Knife

• Knife Length 245mm
• Knife Blade Depth 39mm
• Weight 113g
• Insulated

Boddingtons JTN-6 Cable Knife

• Knife Length 196mm
• Weight 74g
• Insulated

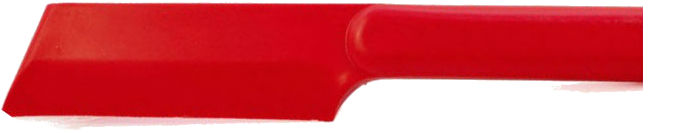

Pictured: Insulated Hacking & Coring Knives - Boddingtons JTN-4 JTN-6



LV-HV Jointers Tools for 1000V, 11kV, 33kV Cable Preparation

Low voltage cable jointing tools for cable stripping and cable preparation of DNO utility and industrial power cables including waveform, consac, XLPE and PILC.

High voltage cable jointing tools enable the cable preparation, stripping, cutting and removal of insulation (XLPE, EPR), semi-conductive screens (bonded and peelable) and outer cable sheaths (PVC, PE, EPR) from single and multi-core 11-33kV cables, including Triplex cable.
