E1W63SK BICC Brass Cable Gland Kit (Prysmian KAA413-60) 50.0-58.9mm

Prysmian E1W63SKE1W Cable Glands

BICC Bicon Cable Gland E1W63SK

Bicon Prysmian KAA413-60

 Prysmian KAA413-60V Nickel Plated

Industrial Brass Cable Glands SWA



BICC Bicon E1W63SK Cable Glands : Gland Kit Prysmian KAA413-60

E1W63SK BICON Brass Cable Gland Kits

  • Min Cable Dia 50.0mm
  • Max Cable Dia 58.9mm
  • Gland Entry Thread M63 x 1.5mm
  • Gland Entry Thread Length 15mm

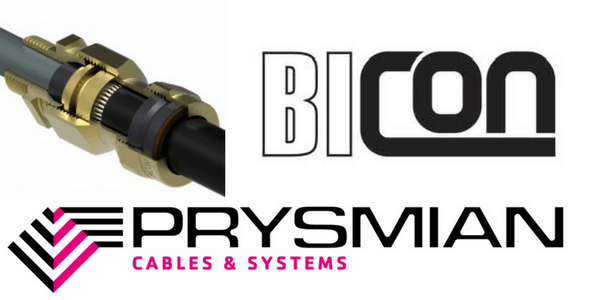

E1W Brass Cable Glands

BICC Bicon E1W63SK - Prysmian KAA413-60 Cable Gland Kit List

  • E1W brass gland
  • E1W brass earth tag provides earth continuity between gland and equipment
  • E1W brass locknut
  • 1 x E1W63SK Prysmian brass cable glands per kit

Prysmian E1W63SK cable glands provide a IP66 double seal, the outer seal grips the cable sheath and the inner seal grips the bedding of the cable. Double compression seal E1W cable glands are available with Cast Integral Earth Lug (CIEL) for HV cables where the fault load is greater than 10.4kA - special application E1W cable glands include lead sheath, LSOH LSF cables and extreme temperature applications.

Gland Kit Prysmian KAA413-60

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Material: Brass
  • Cable Gland Size: E1W63S
  • Quantity Per Kit: 1 Cable Gland
  • Cable Type: SWA Steel Wire Armoured BS6724
  • Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
  • Under Armour Cable Diameter (A): 50.0mm Maximum
  • Under Armour Cable Diameter (B): 44.1mm Minimum
  • Overall Cable Diameter (B): 50.0mm Minimum
  • Overall Cable Diameter (B): 58.9mm Maximum
  • Armour Wire Diameter: 2.5mm
  • Entry Thread (D) : M63 x 1.5
  • Thread Length (E) : 15mm
  • Protrusion Length (F): 67mm

  • Hexagon A/F (G): 75.0mm
  • Hexagon A/C (H): 83.0mm
  • Order Code: Prysmian E1W63S 421LSF-60
  • Industrial Application Also: Prysmian E1W63S Cable Gland KAA413-60


E1W Brass Cable Glands - Dimensions

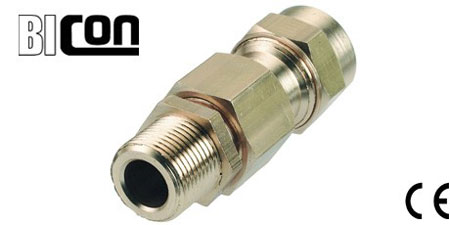

Prysmian E1W63SK Brass Cable Gland Kit


T&D distribute the complete range of Prysmian Hazardous Area Cable Glands with ATEX certificaton for ATEXZone 1 and Zone 2 installations.
