E1W20SK BICC Brass Cable Gland Kit (Prysmian KAA413-52) 8.0-15.8mm

Prysmian E1W20SKE1W Cable Glands

BICC Bicon Cable Gland E1W20SK

Bicon Prysmian KAA413-52

 Prysmian KAA413-52V Nickel Plated

Industrial Brass Cable Glands SWA



BICC Bicon E1W20SK Cable Glands : Gland Kit Prysmian KAA413-52

E1W20SK BICON Brass Cable Gland Kits

  • Min Cable Dia 8.0mm
  • Max Cable Dia 15.8mm
  • Gland Entry Thread M20 x 1.5mm
  • Gland Entry Thread Length 15mm

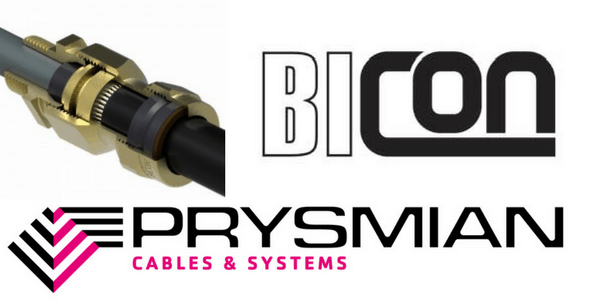

E1W Brass Cable Glands

BICC Bicon E1W20SK - Prysmian KAA413-52 Cable Gland Kit List

  • E1W brass gland
  • E1W brass earth tag provides earth continuity between gland and equipment
  • E1W brass locknut
  • 2 x E1W20SK Prysmian brass  cable glands per kit

Prysmian E1W20SSK cable glands provide a IP66 double seal, the outer seal grips the cable sheath and the inner seal grips the bedding of the cable. Double compression seal E1W cable glands are available with Cast Integral Earth Lug (CIEL) for HV cables where the fault load is greater than 10.4kA - special application E1W cable glands include lead sheath, LSOH LSF cables and extreme temperature applications.

Gland Kit Prysmian KAA413-52

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Material: Brass
  • Cable Gland Size: E1W20S
  • Quantity Per Kit: 2 Cable Glands
  • Cable Type: SWA Steel Wire Armoured BS6724
  • Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
  • Under Armour Cable Diameter (A): 11.6mm Maximum
  • Under Armour Cable Diameter (B): 8.7mm Minimum
  • Overall Cable Diameter (B): 8.0mm Minimum
  • Overall Cable Diameter (B): 15.8mm Maximum
  • Armour Wire Diameter: 0.9/1.25mm
  • Entry Thread (D) : M20 x 1.5
  • Thread Length (E) : 15mm
  • Protrusion Length (F): 46mm

  • Hexagon A/F (G): 25.7mm
  • Hexagon A/C (H): 29.2mm
  • Order Code: Prysmian E1W20S 421LSF-52
  • Industrial Application Also: Prysmian E1W20S Cable Gland KAA413-52

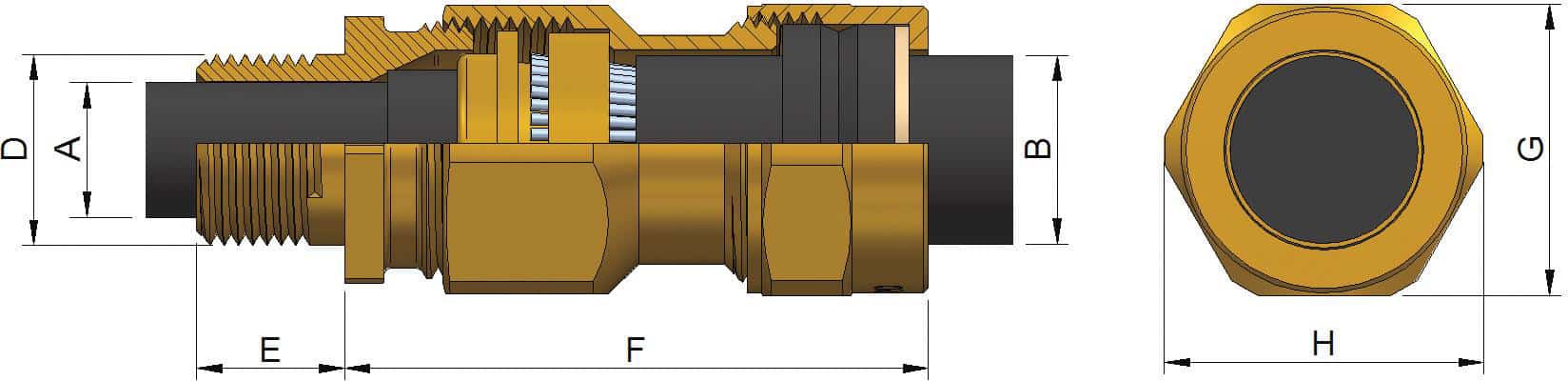

E1W Brass Cable Glands - Dimensions
Prysmian E1W20SK Brass Cable Gland Kit


T&D distribute the complete range of Prysmian Hazardous Area Cable Glands with ATEX certificaton for ATEXZone 1 and Zone 2 installations.
