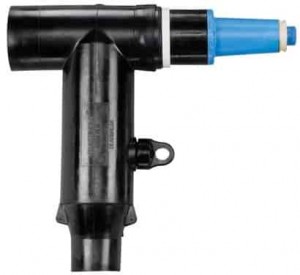

Elastimold 700 series screened separable connectors are EPDM pre-moulded, high voltagecable terminations for 6.6kV, 11kV, 15kV, 24kV and 33kV high voltage electrical equipment including switchgear, transformers and motors.

Elastimold 700 series separable connectors include bolted tee connectors and equipmentElastimold 700 Series Connectors bushings for oil insulated high voltage electrical equipment (transformers, switchgear, capacitors), 800A and 1250A up to 33kV - Elastimold 700 series bushings are moulded epoxy in accordance with ANSI/IEEE 386 standard (5/8" threading system).

T&D UK with the support of Elastimold provide installation training and certification for experienced high voltage cable jointers up to 33kV.


High Voltage Equipment Bushings - Elastimold Bushings
Elastimold separable connectors for terminating high voltage power cables are designed to mate with an outer cone type bushing on switchgear, transformers or motors - each screened separable cable connector has unique dimensions and/or electrical contact pins/screws.

Type A Bushings - 200 Series Bushings 7.9mm Plug In Pin, Voltage Range 12-24kV, Current Rating 250 Amps Copper Pin - Use Nexans Euromold 158LR Plug In Separable Connector

Type B Bushings - 400 Series Bushings 14mm Plug In Pin, Voltage Range 12-36kV, Current Rating 400 Amps Copper Pin - Use Nexans Euromold 400LR Plug In Separable Connector

Type C Bushings - 400 Series Bushings M16 Bolted, Voltage Range 12-36kV, Current Rating 630 Amps Copper Stud - Use Nexans Euromold 400TB Plug In Separable Connector

Type C Bushings - 400 Series Bushings M16 Bolted, Voltage Range 12-36kV, Current Rating 1250 Amps Copper Stud - Use Nexans Euromold 440TB Plug In Separable Connector

Type D Bushings - 600 Series Bushings 5/8" Bolted, Voltage Range 12-24kV, Current Rating 800 Amps Aluminium Stud - Use Elastimold 650LR Plug In Separable Connector

Type D Bushings - 600 Series Bushings 5/8" Bolted, Voltage Range 12-24kV, Current Rating 1250 Amps Aluminium Stud - Use Elastimold 675LR Plug In Separable Connector

Type E Bushings - 700 Series Bushings 5/8" Bolted, Voltage Range 12-36kV, Current Rating 800 Amps Aluminium Stud - Use Elastimold 750LR Plug In Separable Connector

Type E Bushings - 700 Series Bushings 5/8" Bolted, Voltage Range 12-36kV, Current Rating 1250 Amps Aluminium Stud - Use Elastimold 775LR Plug In Separable Connector

T&D distribute the complete range of Elastimold HV cable bushings, screened separable connectors, cable joints and cable terminations in both heat shrink and cold shrink for high voltage systems.
