Airfield Ground Lighting Cable Joints

Low Voltage LV Cable Joints & Cable Jointing Kits

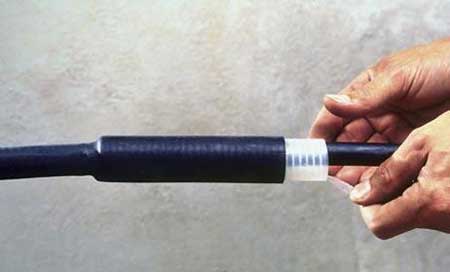

3M Scotchcast 82A airfield lighting cable joints are designed for 5kV single core screened primary circuit and 1000 volt secondary circuit cables for connections between transformers and lamps. Primary series circuit cables are used in AGL series circuits to connect the constant current regulator to the primary windings of the series transformers.

3M epoxy cable joints include No 4 Scotchcast resin suitable for high humidity and wet areas - approved by DOE (Department of the Environment). 3M 82A resin cable joints are suitable for XLPE, PVC and PE airfield lighting cables including duct, trench or direct burial jointing installations.

SPS airfield lighting heat shrink joint kits are DOE approved
for military and civilian airfields.

Nominal Conductor Cable Joint Kit      Cable Diameter
        Area (mm2)                                        Min (mm) Max (mm)
                6sqmm               82-A1                    6               16
              10sqmm               82-A1
              16sqmm               82-A1
              25sqmm               82-A2                   16              25
              35sqmm               82-A2
              50sqmm               82-A2
              70sqmm               82-A3                   25              36
              95sqmm               82-A3
             120sqmm              82-A3

Thorne & Derrick UK can offer competiitive pricing for Osram, Thorn and Phillips airfield ground lighting lamps.
