SPS HV Cable Termination Kits 6.6kV-33kV Single & 3 Core Polymeric Cables

Cable Terminations







SPS HV Heat Shrink Cable Joints & Terminations

High Voltage Cable Termination Kits, Single & 3 Core Polymeric Cables

6.6kV, 11kV, 33kV Heat Shrink Termination Kits

SPS high voltage cable termination kits are suitable for single and three core polymeric cables (XLPE and EPR) with operating voltages of:

  • 6.6/7.2kV
  • 11/12kV
  • 17.5kV
  • 24kV
  • 33kV

HV heat shrink cable terminations are tested and qualified as outlined in Cenelec standards HD 628 S1 andCenelec Cable Joints Terminations 629.1 S2 : 2006.

This cable testing testing criteria encompasses VDE0279 and IEC60502 and the following voltage classes : 3.8/6.6 (7.2kV), 6.35/11 (12kV), 8.7/15 (17.5kV), 12.7/22 (24kV) and 19/33 (36kV).

SPS High Voltage Cable Termination Kit List (Typical) - Single Core Cables

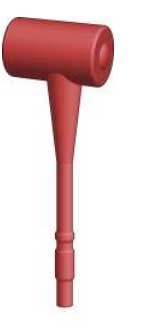

  • Anti-track heat shrink core tubes x 3Heat Shrink Cable Termination Single Core 11kV 33kV
  • Stress control heat shrink tubes x 3
  • Yellow stress relief tape for screen ends x 3
  • Red mastic sealing tape x 1
  • Cable cleaning and de-greasing wipes x 3
  • Box, label, jointing instructions x 1

SPS High Voltage Cable Termination Kit List (Typical) - 3 Core Cables

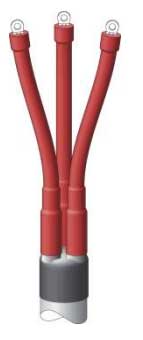

  • Anti-track heat shrink core tubes x 3Heat Shrink Cable Termination 3 Core 11kV 33kV
  • Stress control heat shrink tubes x 3
  • Yellow stress relief tape for screen ends x 3
  • 3 core heat shrink cable breakout boot x 1
  • Red mastic sealing tape x 1
  • Cable cleaning and de-greasing wipes x 3
  • Box, label, jointing instructions x 1



Pictured : SPS Heat Shrink Cable Terminations. SPS high voltage cable terminations are suitable for both indoor (switchgear, transformer, cable box, motor type) and outdoor (pole mounted) terminating of single and 3 core cables.

Heat Shrink Cable Terminations - Single & 3 Core 11kV 33kV

HV Cable Terminating Tips

  • Use heat shrink propane gas torch with soft flame and suitable HV jointers tool for removal of semi-conductive screen to provide a reliable discharge free cable termination screen point.
  • Keep flame on the move to ensure heat shrinking of cable termination and reduce scorching.
  • Allow cable termination to cool before applying mechanical strain.



Screen Treatment i) Copper Wire Screen - twist copper wire screens together and bond to suitable earth point with mechanical or crimp cable lugs, red mastic sealant (supplied) is applied to below the sheath cut. ii) Copper Tape Screen - solderless earth bonding kits (copper earth braid plus constant force springs) provide earthing to high voltage copper tape screen cables.

Pictured : Copper Tape Screen Earthing. Apply one turn of red mastic tape at a point 30mm below the cable sheath cut. Remove copper tape screens to a point 40mm above the cable sheath cut. Position a copper earth braid onto the copper tape screen and secure using constant force spring. Ensure the moisture block is bedded into the red mastic tape and apply one further run of mastic tape over this point. Secure end of the copper earth braid to suitable earth point within high voltage switchgear, transformer or motor.

Heat Shrink Cable Termination  Copper Tape Screen

Outdoor Cable Terminations feature rain sheds fitted at a distance 200mm from the lower edge of theOutdoor Heat Shrink Cable Terminations anti-track heat shrink tube to the edge of the rain shed. All subsequent rain sheds should be installed at a distance of 80mm from edge-to-edge. Rain sheds should not be installed at the top of the stress control tubes. Rain sheds should be installed through 180 degrees if the cable termination is to be installled above the equipment (reverse position).





HV Termination Kits Optional Extras - Solderless Earth Kit for Copper Tape Screen Cables, Insulating Bushing Boots (Straight, Right Angled, Universal), HV Cable Glands for SWA or AWA Cable (Bolt-on Top Hat), Outdoor Armour Earthing Kit, Outdoor Stand-off Brackets + Insulators, High Voltage HV Cable Lugs (Crimp or Mechanical Shearbolt Lugs).



  • Cable Termination Accessories 6.6kV 7.2kV
  • Cable Gland, Bushing Boots, Screen Earth Kit, Lugs (Crimp or Mechanical)

Cable Termination Accessories







SPS High Voltage Heat Shrink Cable Termination Kits, 6.6kV 11kV 33kV Testing
SPS high voltage heat shrink termination kits are Tested and Certified to latest International Test Standards as outlined in Cenelec standards HD 628 S1 and 629.1 S2 : 2006 - high voltage cable termination kit testing also encompasses VDE 0278 and IEC 60502.



Heat Shrink Cable Terminations 6.6kV 11kV 33kV
