High Voltage Cable Test Sets

High Voltage AC & DC Cable Test Sets

XLPE, EPR, PILC & Triplex 11kV-33kV Cable Test Sets

Bicotest High Voltage Cable Test Sets

SEBA KMT Cable Fault Locators & Cable Sheath Testers

SEBA KMT Electrical Testing Equipment







Low and high voltage cable test sets are for newly installed cables prior to energisation, disconnected cables and for preventative checks following cable jointing and cable repair.

High voltage cable test sets enable the assesment of the condition and strength of high voltage cable installations.

VLF High Voltage Cable Testing Sets
Seba KMT solved this problem and developed a compact, lightweight cable testing device which offers the advantage of alternating voltage. With an output voltage of 10kV and 0.1 Hz AC at 2.5 µF, the Easytest 10 kV Cable Test Sets provides sufficient power to test HV high voltage cables of more than 5km lengths at 0.1 Hz in the 10 kV range. A DC voltage module with leakage current  measurement is available for testing of PVC and PILC cables. The cable testing options are completed by a sheath testing function and pulsed output voltage for sheath fault pinpointing.

SEBA KMT VLF cable testing sets identify weak or critical spots in low and high voltage cable systems including PVC, PE, XLPE, PILC - voltages classes cover 3.3kV, 6.6kV, 11kV, 20kV and 33kV.

Quick and reliable high voltage cable testing after installing, cable jointing or repairing cables is vital for reliable electricity distribution. Reconnecting the voltage without cable testing is a risk - a typically applied method is a five or ten minute DC cable test in the operating voltage range. Either simple DC testers or insulation testers are used - however with maximum voltages of 10kV DC cable testers seldom meet the operating voltage range.

It is an accepted fact that – particularly for XLPE cables – testing with DC voltage is useless. Furthermore, if the high voltage cables are old it can even cause additional ageing or cable damage due to polarisation effects. DC voltage tests can only reveal the most serious problems. Hidden problems cannot be detected leading to cable breakdowns during operation following the test.

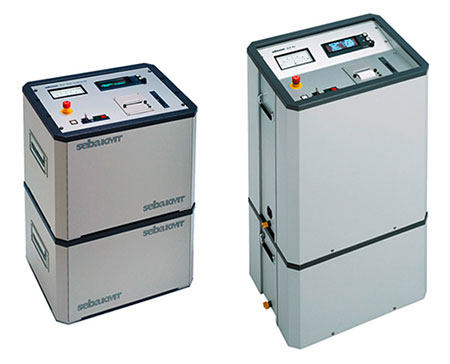

SEBA KMT High Voltage HV VLF Cable Testers

YouTube Video Playlist: SEBA KMT Cable Testers & Fault Locators

SEBA KMT High Voltage VLF Cable Testers Up To 28kV


SEBA KMT High Voltage VLF Cable Testers Up To 20kV



SEBA KMT High Voltage VLF Cable Testers Up To 60kV

Adobe

High Voltage Cable Test Sets - 10kV AC Cable Test Sets

Adobe

High Voltage Cable Test Sets - 20kV AC Cable Test Sets

Adobe

High Voltage Cable Test Sets - VLF - up to 20kV

Adobe

High Voltage Cable Test Sets - VLF - up to 28kV

Adobe

High Voltage Cable Test Sets - VLF - up to 60kV

Adobe

HV Cable Test Sets for Cables, Cable Joints & Networks up to 25kV

Adobe

HV Cable Test Sets for Cables, Cable Joints & Networks up to 40kV

Adobe

HV Cable Test Sets for Cables, Cable Joints & Networks up to 50kV

Adobe

HV Cable Test Sets for Cables, Cable Joints & Networks up to 66kV

Adobe

HV Cable Test Sets for Cables, Cable Joints & Networks up to 80kV

Adobe

HV Cable Test Sets for Cables, Cable Joints and Networks up to 110kV
