Cold Shrink 11kV Cable Joints Single Core Polymeric Cables with Copper Wire Screens

11kV Cable Joints - Single Core

3M Cold Shrink : High Voltage Cable Joints & Cable Terminations

Single Core XLPE EPR Triplex Cable Joints 11kV - 3M Cold Shrink QS1000

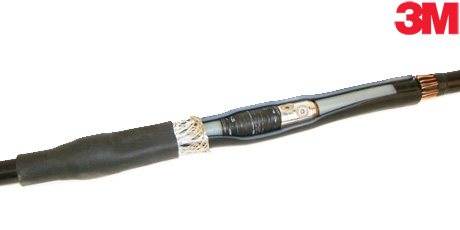

3M Cold Shrink QS1000 11kV single core, copper wire screened, high voltage polymeric inline cable joints offer fast, safe and simple cable installations without the dangers and hassles of “hot-working” associated with heat shrink joints - no naked flames, no gas torches, no ignition tools, no “hot-work” permit applications.

3M Cold Shrink high voltage QS1000 cable joints satisfy all industrial and Triplex utility power cable jointing applications including : polymeric straight inline, transition inline, trifurcating, trifurcating transition, branch (breeches), pot-end (live cable end seal) and loop cable joints for 11kV networks, including Triplex cables to BS7870, Part 4.

3M Cold Shrink 11kV Single Core Polymeric Cable Joints - Benefits :

• Excellent 3M Cold Shrink electrical insulating performance at 6.6kV-11kV
• Hydrophobic properties - waterproof for underground and cable tray joints
• Excellent high and low temperature operation
• Cold Shrink joints require no heat at all - less tools, less risk, improved safety
• Non-flammable silicone rubber Cold Shrink QS1000 joints
• One-part 11kV QS1000 cable joint body for quick installation
• Built in cold shrink stress control for reliable high voltage cable service
• Compact design for limited working access in joint bays or cable trays

3M Cold Shrink single core polymeric cable joints (QS1000) are suitable for both 6.6kV and 11kV XLPE and EPR insulated cables with copper wire screen (CWS) -  this includes BS7870 Part 4 Triplex Utility Cables (pictured).

T&D have been Approved 3M Distributors since 1985 with the largest UK stocks of HV Cold Shrink joints and terminations (6.6kV, 11kV, 33kV) for the construction, oil, gas, petrochemicals, rail, renewable energy and utilities.

QS1000 / 2000 / 3M Cold Shrink Joint Body:

Adopted by dozens of power utilities across the world as their preferred cable jointing solution, the QS1000/2000 Cable Joint or Splice Body is 3M's premium line and offers a built in semi-conductive electrode - saving the need to use tape delivering even more consitency of installation.

Covering almost any high voltage cable configuration and size, this range covers voltage classes up to 6.6-66kV and has been widely tested to VDE0278, HD629 and BS7888.

11kV Joints 3M QS1000 Cold Shrink, Single Core XLPE & Triplex 70-150sqmm - 92AG611-1C

11kV Joints 3M QS1000 Cold Shrink, Single Core XLPE & Triplex 185-240sqmm - 92AG621-1C

11kV Joints 3M QS1000 Cold Shrink, Single Core XLPE & Triplex 300-400sqmm - 92AG631-1C
