Nexans Euromold 158LR Screened Separable Connectors 200 Series up to 250A 24kV - Interface A

Nexans Euromold 158LR Separable Elbow Connectors

Nexans Euromold Separable Connectors - Euromold 158LR

Nexans Euromold Interface Type A

200 Series Bushings, 250amps, 11-24kV



Nexans Euromold 200 series screened separable connectors are EPDM pre-moulded, high voltage cable terminations for 6.6kV, 11kV, 15kV and 24kV electrical equipment including switchgear, transformers and motors.

Nexans Euromold separable elbow connectors are designed to terminate high voltage polymeric (XLPE EPR) screened (copper wire or copper tape) cables to CENELEC Interface Type A (250amp) bushings with 7.9mm plug-in pins, 11kV-24kV.

Nexans Euromold 200 series separable connectors include Nexans Euromold elbow connectors,Nexans Euromold Connectors Nexans Euromold straight plugs, Nexans Euromold bushings (air, oil and gas insulated switchgear) and Nexans Euromold surge arresters to protect 11kV-24kV electrical equipment.



Nexans Euromold Separable Elbow Connectors 200 Series Interface Type A - 158LR Features:

  • Connector for terminating high voltage polymeric (XLPE EPR) cables, 11-24kV
  • Plug in screened separable elbow with current rating 250amps
  • Conductive EPDM jacket provides a touch safe screened termination
  • Suits copper wire and copper tape screened cable, 16-150sqmm
  • Type A 250A interface to CENELEC EN50180



T&D UK with the support of Nexans provide installation training and certification for experienced high voltage cable jointers up to 33kV.



Nexans Euromold 158LR Elbow Connector Interface Type A Design

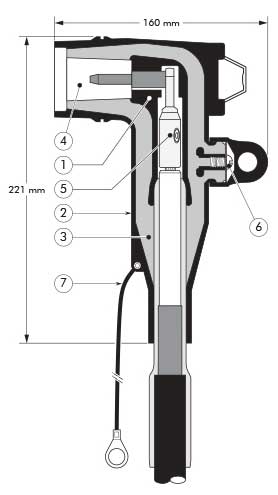

Nexans Euromold Interface Type A Separable Connectors 158LR

Nexans Euromold Separable Connector Comprises:

1. Conductive EPDM insert

2. Conductive EPDM jacket

3. Insulating EPDM layer

4. Type A - 250 A Interface connector as described by CENELEC EN 50180 and 50181

5. Conductor connector

6. Voltage test point

7. Earthing lead (-/G version only)




High Voltage Equipment Bushings - Nexans Euromold Bushings
Nexans Euromold separable connectors for terminating high voltage power cables are designed to mate with an outer cone type bushing on switchgear, transformers or motors - each screened separable cable connector has unique dimensions and/or electrical contact pins/screws.

Type A Bushings - 200 Series Bushings 7.9mm Plug In Pin, Voltage Range 12-24kV, Current Rating 250 Amps Copper Pin:

Use Nexans Euromold 158LR Plug In Separable Connector

Type B Bushings - 400 Series Bushings 14mm Plug In Pin, Voltage Range 12-36kV, Current Rating 400 Amps Copper Pin:

Use Nexans Euromold 400LR Plug In Separable Connector

Type C Bushings - 400 Series Bushings M16 Bolted, Voltage Range 12-36kV, Current Rating 630 Amps Copper Stud:

Use Nexans Euromold 400TB Plug In Separable Connector

Type C Bushings - 400 Series Bushings M16 Bolted, Voltage Range 12-36kV, Current Rating 1250 Amps Copper Stud:

Use Nexans Euromold 440TB Plug In Separable Connector

Type D Bushings - 600 Series Bushings 5/8" Bolted, Voltage Range 12-24kV, Current Rating 800 Amps Aluminium Stud:

Use Elastimold 650LR Plug In Separable Connector

Type D Bushings - 600 Series Bushings 5/8" Bolted, Voltage Range 12-24kV, Current Rating 1250 Amps Aluminium Stud:

Use Elastimold 675LR Plug In Separable Connector

Type E Bushings - 700 Series Bushings 5/8" Bolted, Voltage Range 12-36kV, Current Rating 800 Amps Aluminium Stud:

Use Elastimold 750LR Plug In Separable Connector

Type E Bushings - 700 Series Bushings 5/8" Bolted, Voltage Range 12-36kV, Current Rating 1250 Amps Aluminium Stud:

Use Elastimold 775LR Plug In Separable Connector

T&D distribute the complete range of Nexans Euromold and Thomas & Betts Elastimold HV cable bushings, screened separable connectors, cable joints and cable terminations in both heat shrink and cold shrink for high voltage systems.
