Nexans Euromold High Voltage Cold Shrink Cable Joints for 6.6kV, 11kV, 24kV and 33kV

Nexans Euromold Connectors

Cable Joints - Nexans Cold Shrink Cable Joints

Cold Shrink Joints

11kV 24kV 33kV





Nexans Euromold high voltage cold shrink cable jointing kits are suitable for 6.6kV, 11kV, 24kV and 33kV cables including straight, transition and stop-end cable joints for single and 3 core cables. Nexans HV cold shrink cable joints are suitable for direct burial underground, cable tray  and submersible jointing applications.

Nexans high voltage joints are tested to CENELEC HD 629.1 and HV jointer training can be provided.

Nexans CSJ-S Cold Shrink Cable Joints - 11kV 24kV 33kV High Voltage Power Cable Joints


HV Joints - Nexans Cold Shrink Cable Joint Check List

  • Cable type - single or three core
  • System voltage kV
  • Conductor type - aluminium or copper, cross section area (sqmm)
  • Core insulation type - XLPE, EPR, Paper
  • Semi-conductive screen type - bonded screen, easy strip screen
  • Cable screen type - copper wire or copper tape screen
  • Armour type - SWA, STA or unarmoured
  • Cable outer sheath diameter


Nexans cold shrinkable high voltage straight and transition cable joints are suitable for all single and three core cables at 11kV, 24kV and 33kV, 35-1000sqmm conductors.



Nexans 12CSJ Joint - Design SpecificationNexans 11kV

Cold-shrinkable cable joint comprising :

1. Extruded double layer silicone body

2. Insulating mastic layer

3. Field control mastic plate

4. Overall protective cover

5. Field control mastic

6. Water sealing mastic

7. Copper mesh

8. Conductor connector (not included in the standard kit)

9. Screen connection with mechanical connector and copper mesh

10. Traceability tag

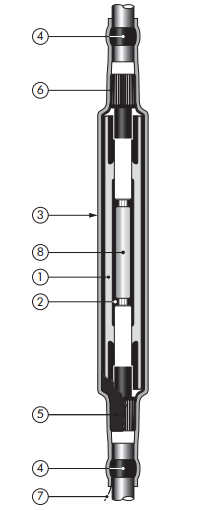

Nexans 36CSSM Joint - Design SpecificationNexans 33kV Cold Shrink Joint

Cold-shrinkable cable joint comprising :

1. Moulded silicone joint body

2. Semi-conductive plate

3. Overall protective cover

4. Water sealing mastic

5. Copper stocking or mesh

6. Self-adhesive copper tape

7. Traceability tag

8. Conductor connector (not included in the standard kit)
