Nexans Euromold High Voltage Heat Shrink & Cold Shrink Cable Terminations up to 33kV

HV Terminations - Nexans ; Heat Shrink or Cold Shrink Kits

Nexans HV cable terminations are suitable for 6.6kV, 11kV, 24kV, 33kV and 42kV cable networks. HV terminations suit single and 3 core polymeric insulated (XLPE and EPR) and paper insulated (PILC and PICAS) cables with copper tape or copper wire screens - heat shrink and cold shrink HV terminations are available.

HV Terminations - Nexans Typical Kit List............
Water sealing mastics
Anti-track high voltage heat shrink tubings
Anti-track rain sheds (outdoor cable terminations)
Stress control heat shrink tubings
Cable break-out (3 core cable terminations)
Oil barrier heat shrink tubings (paper cable terminations)
Solderless earth kit (copper tape screened cable terminations)

Nexans provides a complete range of HV terminations, HV joints, HV separable connectors and HV equipment bushings up to 33kV. HV cable terminations and joints are available in heat or cold shrink technologies as well as slip-on. For paper insulated cables, a full range of HV terminations and joints (including transition joints) is also available. Separate connectors are produced in both EPDM and silicone rubber.

HV Heat-shrinkable terminations and joints:
Suitable for single or 3-cores, paper or polymeric insulated cables up to 33kV. The high quality heat-shrinkable non-tracking tubes and stress control tubes of the terminations provide long term performance and the highest reliability for indoor as well as for outdoor applications. The heat-shrinkable cable joints offer an easy to install and reliable connection.

HV Cold-shrinkable terminations and joints:
Suitable for single core, paper or polymeric insulated cables up to 24kV cold-shrinkable accessories set new standards in installation technique. All functions are integrated in single piece which is factory installed on plastic supporting tubes. After standard cable preparation, the pre-expanded accessory is positioned over the cable and shrunk by extracting the supporting tubes.

HV Slip-on terminations and joints:
Suitable for single core polymeric insulated cables up to 33kV, this range of pre-molded slip-on HV terminations and joints is made of silicone or EPDM rubber. HV terminations in silicone-rubber are single pieces while EPDM terminations are modular. Both can be used for indoor and outdoor applications. Straight joints for polymeric cables are available in EPDM or silicone rubber. Cable repair joints also exist in silicone rubber.

Nexans Euromold Elastimold Cable Terminations for High Voltage Switchgear & Transformers
Euromold manufacture 11kV-33kV pre-moulded EPDM separable elbow connectors, heat shrink cable joints and cable terminations, cold shrink cable joints and cable terminations and epoxy bushings for high voltage switchgear and transformers. Euromold cable accessories meet CENELEC HD929.1, CENELEC EN50180, IEC 137, IEEE 386 & 404. A screened cable connector is an encapsulated, safe to touch high voltage cable termination used to connect HV cables to the epoxy bushings of high voltage electrical equipment including transformers, switchgear and motors.

Video: Nexans Euromold - High Voltage Cold Shrink Cable Kit

Video : Nexans 33kV 36kV Slip-On Outdoor High Voltage Cable Terminations - Nexans AFNP36

Adobe Thomas Betts Elastimold Fuses Arresters Elbows Catalogue

Adobe 6.6kV-11kV-24kV-33kV Indoor Heat Shrink Cable Termination, 3 Core Polymeric 35-400sqmm - Nexans SRD

Adobe 6.6kV-11kV-24kV-33kV Outdoor Heat Shrink Cable Termination, 3 Core Polymeric 35-400sqmm - Nexans SR

Adobe 6.6kV-11kV-33kV Indoor Heat Shrink Cable Termination, Single Core Polymeric 35-630sqmm - Nexans SREI

Adobe 6.6kV-11kV-33kV Outdoor Heat Shrink Cable Termination, Single Core Polymeric 35-630sqmm - Nexans SRE

Adobe 11kV-24kV Indoor Cold Shrink Cable Termination, Single Core Polymeric 50-800sqmm - Nexans ITK

Adobe 11kV-24kV Outdoor Cold Shrink Cable Termination, Single Core Polymeric 50-630sqmm - Nexans OTK

Adobe 11kV-33kV-42kV Indoor Cold Shrink Cable Termination, Single Core Polymeric 25-1000sqmm - Nexans AIN

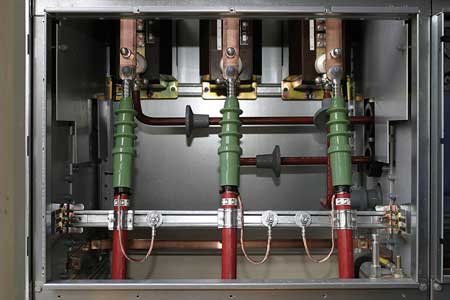

Adobe 11kV-33kV-42kV Outdoor Cold Shrink Cable Termination, Single Core Polymeric 25-1000sqmm - Nexans AFN

Adobe 11kV- Indoor Heat Shrink Cable Termination, 3 Core Paper 16-300sqmm- Nexans SPDI

Adobe 11kV- Outdoor Heat Shrink Cable Termination, 3 Core Paper 16-300sqmm- Nexans SPDF

Adobe T&D UK - HV Terminations, Joints & Electrical Equipmen
