Centriforce Centritile Warning Tape - Tape Tile
Centritile Cable Warning & Protection Tape for Underground Low Voltage & High Voltage Power Cables up to 11kV

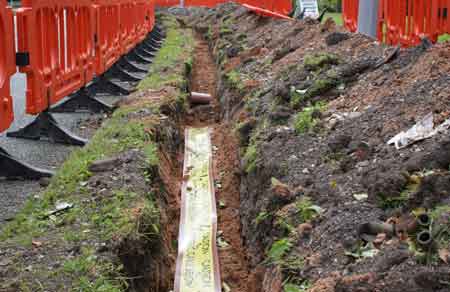

Centritile cable warning tape tile is rolled out into the cable trench for quick and easy protection of low voltage, high voltage, street lighting and underground electricity cables up to 11kV. Centritile is also suitable for providing protection to underground gas mains and water pipes.
Custom printed cable warning tape tile for high voltage cable protection is available to all DNO specifications, including Scottish Power.
Centritile Underground Cable Protection - Specifications
Standard Tape Tile sizes available are :
* 40 metres x 150mm x 2.5mm Tape Tile Centritile Cable Protection
* 40 metres x 200mm x 2.5mm Tape Tile Centritile Cable Protection
* 50 metres x 150mm x 2mm Tape Tile Centritile Cable Protection
* 50 metres x 200mm x 2mm Tape Tile Centritile Cable Protection
Centritile warning tape can be produced up to 4mm thickness and 600mm width.
Underground Tape Tile Applications - Electric, Gas & Water

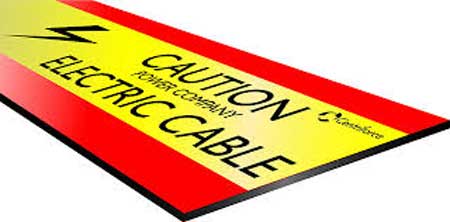

Electric : Red/Brown background with yellow tape/black lettering
Fibre Optic : Green background with black lettering
Gas : Yellow background with black lettering
Water : Blue background with black lettering
Centritile cable protection is available in other colours upon request.
Centritile Cable ProtectionStandards
Centritile underground cable protection is approved by utilities worldwide and complies with ENATS 12-23.
Centritile Benefits
Clear warning to third parties of underground cables and pipes
Contains company logo in bold warning text for clear cable identification
Damages to LV-HV cables less likely reducing the cost of repairs
Lightweight and easy to install irrespective of weather conditions
Durable with good impact resistance
Rotproof and resistant to wide range of soil conditions
Centritile tape tile cable protection rolls are available custom printed to DNO specifications including SSE Scottish & Southern Energy, Scottish Power SP Energy Networks, Electricity North West, Northern Powergrid, Western Power Distribution, UK Power Networks and NIE Northern Ireland Electricity - 11kV and 33kV underground cable protection.
Centritile® is a registered trademark of Centriforce Products Limited, the market-leading manufacturer of Underground Cable Protection to Low and High Voltage Power Cables and Pipes in the electric, gas and water utilities.
Tape Tile - Centritile Cable Tile Tape 40m x 150mm x 2.5mm
Tape Tile - Centritile Cable Tile Tape 40m x 200mm x 2.5mm
