Double Eye Cable Socks

Cable Pulling & Cable Laying Equipment LV HV Power Telecoms

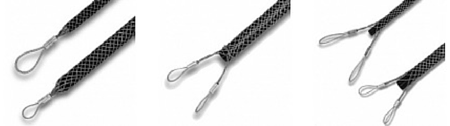

Double eye cable socks are ideal for medium to heavy cable pulls - the main advantage over single eye cable socks is, since the cable being pulled can be passed through the sock, several cables can be used to support over a calculated distance.

Double eye cable pulling socks are used throughout the UK DNO network for pulling LV-HV cables - following mechanical pulling-in tensions should be used for guidance only :

Wavecon CNE 95sqmm 3.0kN 305 kgf maximum tension
Wavecon CNE 185sqmm 7.0kN 713 kgf maximum tension
Wavecon CNE 300sqmm 7.0kN 713 kgf maximum tension
11kV PICAS 95sqmm 3.9kN 400 kgf maximum tension
11kV PICAS 185sqmm 6.3kN 650 kgf maximum tension
11kV PICAS 300sqmm 9.8kN 1000 kgf maximum tension
11kV Triplex 70sqmm 6.1kN 630 kgf maximum tension
11kV Triplex 95sqmm 8.4kN 855 kgf maximum tension
11kV Triplex 150sqmm 13.2kN 1350 kgf maximum tension
11kV Triplex 185sqmm 16.3kN 1665 kgf maximum tension
11kV Triplex 300sqmm 19.6kN 2000 kgf maximum tension

Double Eye Cable Socks
CS21 Cable Sock 6-13mm Dia, 230mm Lattice Length, 305mm Overall
CS22 Cable Sock 13-19mm Dia, 355mm Lattice Length, 430mm Overall
CS23 Cable Sock 19-25mm Dia, 405mm Lattice Length, 510mm Overall
CS24 Cable Sock 25-38mm Dia, 455mm Lattice Length, 610mm Overall
CS25 Cable Sock 38-50mm Dia, 535mm Lattice Length, 735mm Overall
CS26 Cable Sock 50-63mm Dia, 610mm Lattice Length, 865mm Overall
CS27 Cable Sock 63-89mm Dia, 685mm Lattice Length, 990mm Overall
CS28 Cable Sock 89-115mm Dia, 685mm Lattice Length, 990mm Overall
CS29 Cable Sock 115-130mm Dia, 685mm Lattice Length, 990mm Overall

Contact T&D UK for 33kV single core XLPE cable pulling tensions.

T&D UK distribute the complete range of Cable Pulling and Cable Laying Equipment for low and high voltage (LV-HV) power cable installations into underground trench or cable duct - this includes XLPE, PILC, EPR, waveform, service cables, triplex, 11kV, 33kV, EHV, fibre optic, telecoms and street lighting cables. We supply cable rollers, cable socks, cable jacks, drum trailers, cable pulling lubricant, underground cable protection (Stokbord & Tape Tile Cable Covers) and conduit duct rod - we service the utility cable laying contractor, electrical contractor and export markets.
