Ellis Patents VRQ+03 Vulcan Quadrafoil Cable Cleat

Ellis Patents VRQ Vulcan Quadrafoil Cable Cleats (Quad)

Ellis Patents VRQ+03

Suitable for Cable Diameters 28-32mm



Ellis Patents VRQ+03 quadrafoil cable cleats are designed for four single core cables to be cleated within a single cable cleat.

VRQ+03 cleats are made from stainless steel with an LSF zero halogen liner and is suitable for 28-32mm diameter cables.

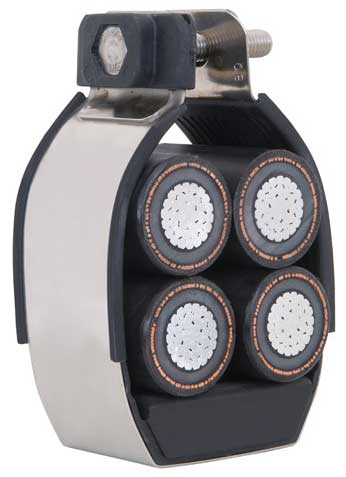

Pictured: Ellis Patents VRQ+03 Vulcan Quadrafoil Cable Cleat

Ellis Patents VRQ+03 Vulcan Quadrafoil Cable Cleat - Product Range

Part Number	Min Diameter (mm)	Max Diameter (mm)	Dimensions				Base Holes	Weight
			W (mm)	H (mm)	D (mm)	P (mm)
VRQ+03	28	32	80	128	54	N/A	1 x M10	318g

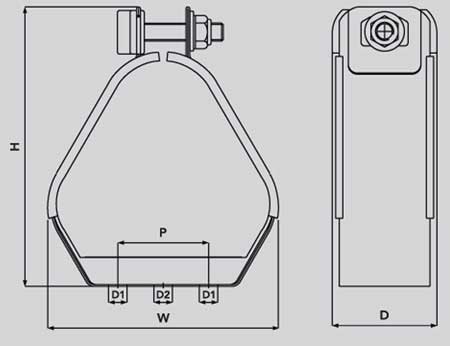

Pictured: Ellis Patents VRQ+03 Vulcan Quadrafoil Cable Cleat - Dimension Illustration

Ellis Patents VRQ+03 Vulcan Quadrafoil Cable Cleat - Spec Sheet
