Alroc Bonded Semi-Conductor Screen Removal Tool - 8YR0-ASC40R2 (38-60mm)
Alroc Cable Preparation, Cable Stripping & Cable Jointing Tools

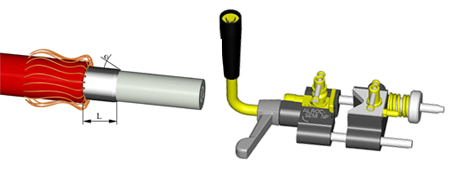

Alroc 8YR0-ASC40R2 Semi-conductive screen stripping tools are used by high voltage cable jointers to strip bonded semi-conductive screens from 6.6kV, 11kV and 33kV high voltage power cables. Alroc stripping tools can effectively remove the bonded semi-conductor from HV high voltage cables. The Alroc bonded screen stripper tools cut cleanly, leaving a straight edged perfect surface for efficient LV-HV cable jointing.
Alroc Semi Conductor Screen Removers Features :
* Robust Alroc design for excellent field service.
* Adjustable handle for comfort.
* Lockable blade depth.
* Spare blades available.
Note- HV Semi-Conductive Screen Removal
Correct removal of the carbon loaded semi-conducting screen from polymeric insulated cables by cable jointers is the single most important factor in controlling the service life of a high voltage cable joint or termination.
Alroc semi-con screen strippers ensure :
* complete removal of the semi-conducting screen
* full thickness insulation with a smooth surface, free of scorch marks
* no loss of bond at the point where the semi-con screen terminates
Alroc Cable Tools for LV-HV power, telecomms and fibre optics cable preparation. Alroc cable preparation tools enable the cable jointer to efficiently dress cables, including low voltage (LV, XLPE, PILC, PICAS EPR, PVC, waveform, consac) and high voltage (3.3kV, 6.6kV, 11kV, 33kV, Triplex up to 132kV) power cables - this covers the removal and stripping of outer cable sheaths, cable insulation, semi-conductor screens (bonded cable and "easy-strip" peelable cable) and lead cable sheaths prior to cable jointing or terminating with heat shrink, cold shrink or push on type cable joints and cable terminations. T&D UK stock cable preparation tools, cable joints and cable terminations including 11kV-33kV heat shrink and cold shrink kits.
