ABC Distribution Boxes

WT Henley ABC (Aerial Bundled Conductor) distribution boxes provide aerial overhead service connections with wall or pole mounted options. WT Henley ABC distribution boxes are manufactured from strong, UV stable flame retardant glass filled nylon conformant to BS7656 . ENATS 43-14.

WT Henley ABC boxes accept incoming conductors with a maximum size of 120sqmm and nine service cables up to 35sqmm - all cable terminals are fully shrouded and identified. ABC boxes are supplied with drilling holes enabling easy and secure wall or overhead pole top mounting.

Ingress protected to IP43 with neutral and earth connections clearly identified.

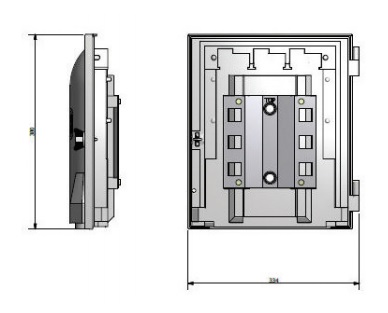

WT Henley ABC Distribution Boxes Diagram

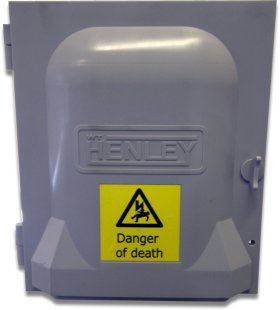

WT Henley ABC Distribution Boxes

WT Henley Part Ref Description
ABC Box CNE 54611-33
ABC Box SNE 54611-21
ABC Box c/w mounting plate CNE 54611-40
ABC Box c/w mounting plate SNE 54611-34



WT Henley ABC Distribution Boxes Diagram

WT Henley ABC Distribution Boxes Diagram

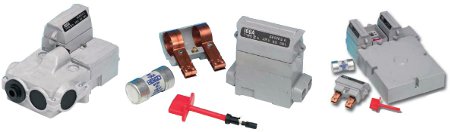

WT Henley Also Have A Range Of House Service Cut Outs 240V 415V CNE & SNE

T&D also offer alongside WT Henley a range of House Service Cut-Outs 240V 415V CNE & SNE.
