Cable Cleats, Ties & Clamps

LU Approved Cable Cleats, Cable Ties & Cable Clamps

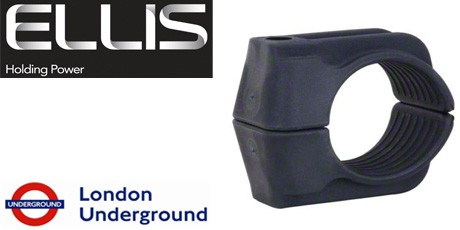

Ellis Patents cable cleats and cable clamps are LUL London Underground Approved for cable cleating, clamping and supporting power, signal and telecomms cables.

Ellis Patents Alpha, Emperor and Vulcan cable cleats plus three specifically designed new cleat ranges, have been put through the stringent LUL Engineering Standard tests. All cable cleats complied with standard 1-085 A2 for ‘Fire Safety Performance Materials’, having met the following parameters for electro-technical components : Limiting Oxygen Index to BS EN ISO 4589-2:1999; Smoke Emission to BS 6853:1999, Annex D.8.3; and Toxic Fume Emission to NFX 70-100:2008.

Ellis Patents cable cleats and cable clamps have received LUL standard 1-085 approval and been added to the London Underground products register :

* Alpha cable cleats – LU product register No 360

* Emperor cable cleats – LU product register No 362

* Vulcan VRT+ cable cleats – LU product register No 361

* LUL version of the 1F one hole cable clamps – LU product register No 363

* LUL version of the 2F two hole cable clamps – LU product register No 364

* LUL version of the new industrial cable clamps – LU product register No 365

T&D distribute the complete range of Prysmian (BICON) cable cleats including mulicleat, trefoil, claw, hook, single and two bolt cleats manufactured from plastic nylon (LSF), stainless steel and aluminium for LV-HV cable support and containment in short-circuit conditions.

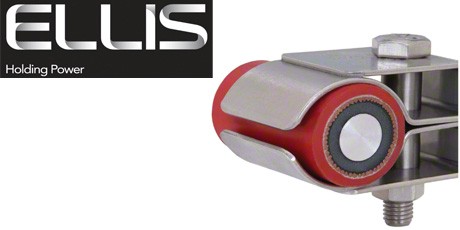

Ellis Patents Fire Proof & Resistant Phoenix Cable Cleats for LU Projects - leading cable cleat manufacturer, Ellis has received London Underground (LUL) approval for its Phoenix range of fire proof cable cleats. Designed specifically for installation with fire protection (FP) rated cables, the cable cleats are manufactured in 316L stainless steel, are fire proof and corrosion resistant and provide a cost-effective method of safe cable restraint for any FP installation. The Phonix cable cleat range was granted full LUL 1-085 approval and has been added to the London Underground Approved Products Register as product 1661. To achieve this it complied with standard 1-085 A2 for Fire Safety Performance Materials having met the following parameters for electro-technical components: Limiting Oxygen Index to BS EN ISO 4589-2:1999, Smoke Emission to BS 6853:1999 and Annex D.8.3 Toxic fume emission to NFX 70-100:2008

	Cable Cleats - Ellis Patents Cable Cleat for Network Rail & London Underground Projects
	Hellermann Tyton Stainless Steel Cable Ties - Brochure
