Wolf WL-80
Hazardous Area Zone 1 & Zone 2
Rechargeable Floodlights & Worklights
Manufacturer: Wolf
Part Code: WL-80

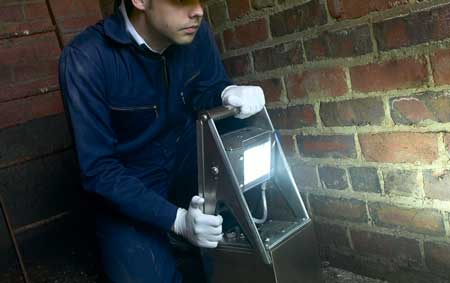

Pictured: Wolf WL-80 ATEX Worklite Hazardous Area Zone 1 & Zone 2
Wolf WL-80 ATEX Worklite Hazardous Area Zone 1 & Zone 2 - Features & Benefits
Wolf Product Reference | WL-80 | ||
Product Description | High Power Rechargeable Battery Worklite 12 LED | ||
Code | II 2 GD Ex e ib mb II C T4 Ex tD A21 IP65 T135ºC | ||
Type of Protection | 'e' Increased Safety, 'ib' Intrinsic Safety, 'mb' Encapsulation, tD Enclosure Protection | ||
Area of Classification (Gas) | Zones 1 and 2, Gas Groups IIA, IIB, IIC | ||
Temperature Classification (Gas) | T4 | ||
Area of Classification (Dust) | Zones 21 and 22 | ||
Max Surface Temperature (Dust) | T135ºC | ||
Ambient Temperature | -20ºC to +40ºC | ||
Certificate | SIRA07ATEX3027 | ||
Enclosure | Stainless Steel with Aluminium LED Lamp Head | ||
Lens | Toughened Glass LEDs Supplied with 3 Anti-Static Lens Guards | ||
Beam Type | Spot Beam with a Flood of Low Level Fringe Light | ||
Light Source | Type | High Power LED | |
Power / Output | 12 x 3 Watt LEDs / Up to 1020 lm | ||
Bulb Life | 25,000 hours+ (Fitted for life) | ||
Power Source | Part Number | W-235 | |
Battery Type | Rechargeable Battery, Sealed Gel Lead Acid | ||
Volts | 12V | ||
Capacity | 33Ah | ||
Life | Up to 500 Recharge Cycles | ||
Low Battery Indicator | Yes | ||
Light Duration - High / Low | Up to 6 hours / 12 hours | ||
Ingress Protection | IP65 to EN60529: 1992 | ||
Weight (Including Battery) | 16.5kg | ||
Charger Input | 100 - 254 Vac | ||
Recharge Time | 8 hours |
Wolf WL-80 ATEX Worklite Hazardous Area Zone 1 & Zone 2 - Spec Sheet |
