Marechal DXN25C Multi-Contact Connectors - Hazardous Area ATEX Explosion Proof Plugs & Sockets

Marechal

ATEX

Marechal - Plugs & Sockets for Hazardous Areas (ATEX)

Marechal DXN25C Metal Multi-Contact Connectors

Marechal multi-contact connectors are IP66/IP67 rated with increased safety for hazardous areas (ATEX).

These Marechal hazardous area plugs & sockets comply with ATEX 94/9/CE Directive, IEC EN 60079-0 IEC60079-7 IEC EN 60079-31 International Standards and NEF C 15-100 French Standard.

Marechal DXN25C ATEX Explosion-Proof plugs & sockets are also certified by VERITAS LCIE and GOST.

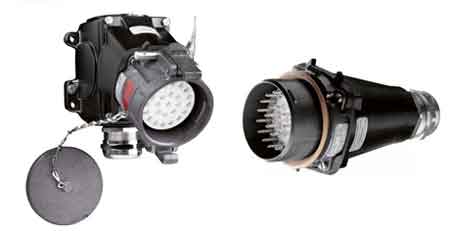

Pictured: Marechal DXN25C Multi-Contact Connectors - Hazardous Area ATEX Explosion Proof Plugs & Sockets

Marechal DXN25C ATEX Plugs & Sockets

Marechal DXN25C ATEX Hazardous Area Plugs & Sockets Features:

Rated Current (with wiring according to standard): 10A
Maximum Voltage: 440V
Number Of Contacts: 24P+E
IP Protection Lid Closed: IP66/IP67
IP Protection Connected Plug: IP66/IP67
Shock Resistance: IK09
Ambient Temperature: -40°C to +55°C
Flexible Wiring (min-max): 1 - 2.5mm²
ATEX Zones: 1 & 2 (gas) 21 & 22 (dusts)

Marechal DXN25C ATEX Hazardous Area Plugs & Sockets Range:

Marechal DXN25C Wall Mounting Socket female (10A)
Marechal DXN25C Plug male (10A)
Marechal DXN25C Inclined Socket female (10A)
Marechal DXN25C Inclined Appliance Inlet male (10A)
Marechal DXN25C Coupler Socket female (10A)
Marechal DXN25C Wall Mounting Appliance Inlet male (10A)

**Marechal DXN25C Multi-Contact Connectors - Hazardous Area ATEX Explosion Proof Plugs & Sockets**
Rated Current (with wiring according to standard)	10A
Maximum Voltage	440V
Number of Contacts	24P+E
IP Protection Lid Closed	IP66/IP67
IP Protection Connected Plug	IP66/IP67
Shock Resistance	IK09
Ambient Temperature	-40ºC to +60ºC
Flexible Wiring (Min-Max)	1mm² - 2.5mm²
Wiring	Crimping
Keying Positions	3
Protection Mode	e or i
ATEX Zones	1 & 2, 21 & 22

Marechal DXN25C Multi-Contact Connectors - Hazardous Area ATEX Explosion Proof Plugs & Sockets

A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal's DXN range of plugs and sockets are suitable for rated currents from 20A up to 63A and maximum voltages from 550V up to 750V.

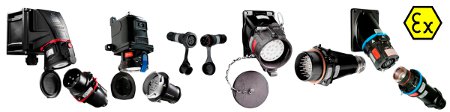

Hazardous Area Plug & Sockets
