Wolf Torches Hazardous Area ATEX Zone 1 & Zone 2

Wolf Torches

ATEX Zone 1 & Zone 2





Wolf Mini and Wolf Micro Hazardous Area Torches, certified for use in potentially explosive atmospheres, use high-tech light sources to give impressive performance with a compact size.

Wolf Micro & Mini Torches are ATEX certified torches for safe use in hazardous area Zones 0, 1, 2, 20, 21 & 22 and potentially explosive atmospheres.

Wolf Mini and Wolf Micro torches are designed for easy storage in a pocket - the perfect hazardous area torch for any application where a small size is critical.

The M-10 Micro, M-40 and M-60 Mini torches use an LED light source and are approved for Category 1 equipment for use in Zones 0, 1 and 2 and the M-20 Mini torch uses a Xenon filament bulb and is approved as Category 2 equipment for use in Zones 1 and 2.

Wolf Micro & Mini Torch ATEX

All four Wolf Safety Lamp Company torches are compliant with the hazardous area 94/9/EC ATEX ‘Explosive Atmospheres’ Directive and certified to IECEx for use in potentially explosive gas, vapour, mist or dust atmospheres, where a T4 or T5 temperature class permits.

All Wolf Safety hazardous area torch models are approved to Group I for use in mining applications.

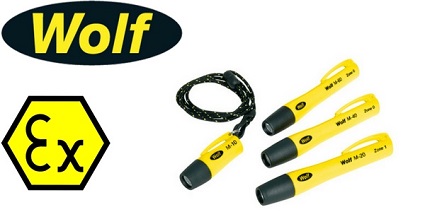

Pictured: Wolf Micro & Mini Torch ATEX

Wolf Micro & Mini Torch ATEX

Wolf M20 Xenon Mini Torch is approved as Category 2 equipment for use in Zones 1 and Zone 2 hazardous areas.

The Wolf M10 Micro Torch has a single white 5mm ‘Nichia’ LED light source and is powered by four alkaline LR44 ‘button cells’ giving an impressive beam with a two hour duration from a very compact size.

The M-20 Mini uses a Xenon filament bulb powered by two LR03 ‘AAA’ cells, giving an excellent narrow beam of light with good range and up to 2.5 hours duration.

The M-40 Mini has a cluster of three white 5mm ‘Nichia’ LEDs, and the M-60 Mini uses a single high power Cree LED giving remarkable light output; both products are powered by three alkaline LR1 ‘N’ cells giving up to ten hours of usable light with the M-40 and up to 3.5 hours* of usable light with the M-60. All Wolf torches are supplied with cells.

Wolf Micro & Mini Torch ATEX - Features & Benefits

  • ATEX and IECEx Certified
  • T4/T5 temperature classWolf Safety
  • Ultra small size
  • Lightweight, ergonomic design
  • Proven impact resistanceATEX
  • Single handed switching
  • Switch protection shroud
  • Integral pen style pocket clip
  • IP67 water and dust tight
  • Gas and Dust Approval
  • Group I Mining Approval

ATEX Certified Torch

Zones 0, 1, 2, 20, 21 & 22 Hazardous Areas

  • Zone 0, Zone 1 & Zone 2 Gas
  • Zone 20, Zone 21 & Zone 22 Dust
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations
Wolf Micro & Mini Torch ATEX - Product Range
Wolf Hazardous Area Torch Wolf Torch M-10 Wolf Torch M-20 Wolf Torch  M-40 Wolf Torch M-60
Torch description LED Micro Torch Xenon Mini Torch LED Mini Torch 1 watt LED Mini Torch
Code  Industrial II 1 GD
Ex ia IIC T5
(Ta=50°C) tD A20 IP67 T80°C		 II 2GD Ex ib IIC T4 tD A21 IP67 T80°C II 1GD Ex ia IIC T4 (Ta=50°C) tD A20 IP67 T80°C
 Mining I M1 Ex ia I IP67 I M2 Ex ib I IP67 I M1 Ex ia I IP67
Type of protection “ia/ib” Intrinsic Safety
Area of classification (gas) Zones 0, 1 & 2 Zones 1 & 2 Zones 0, 1 & 2
Temp. classification (gas) T5 T4
Ambient temperature -20°C to + 50°C -20°C to + 40°C -20°C to + 50°C
Area of classification (dust)  Zone 20, 21 & 22  Zone 21 & 22  Zone 20, 21 & 22
Max surface tempeature (dust) 80°C  80°C  80°C
Certification Baseefa06ATEX0084 - IECEx BAS 06.0023
Enclosure Impact resistant thermoplastic, electrostatic non-hazardous
Lens Polycarbonate
Beam type Medium Spot Narrow Spot Medium Spot





Light source:

 Pt. no. - M-201 - -
Type 1x5mm LED White (Nichia) Xenon filled filament bulb 3 x 5mm LED White (Nichia) 1 x 1Watt LED White (Luxeon)
Rating - 2.3V 0.3A - 1 Watt
Output
30 cd
15 lm
3 x 30 cd
up to 90 lm
Life 25,000 hrs 30 hrs 25,000 hrs





Power source:

 Pt. no. M-102
(4 pack)		 M-202 (2 pack) M-402 (3 pack)
Type LR44 primary cells
to IEC60086		 LR03 primary cells to IEC60086 LR1 primary cells to IEC60086
Volts 4 x 1.5V 2 x 1.5V 3 x 1.5V
Light duration up to 2 hrs up to 2.3 hrs up to 10 hrs 1.5-3.5 hrs*
Ingress protection IP67 to EN60529:1992
Weight (incl. cells) 25g 60g



*M-60 battery duration/light output is dependant on battery make and type.

The Wolf Micro & Mini range are torches manufactured by Wolf Safety Lamp to provide lighting in Zone 1, Zone 0, Zone 21 or Zone 20 hazardous areas – the LED / Xenon torches are for use in potentially explosive atmospheres according to the ATEX Directive.

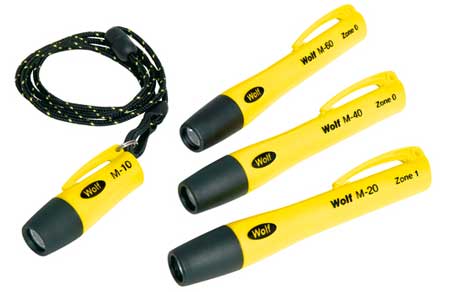

Pictured: Wolf Micro & Mini Torch ATEX for Hazardous Areas - Zone 1 & Zone 2

Wolf Micro & Mini Torch ATEX for Hazardous Areas - Zone 1 & Zone 2

Adobe

Wolf Micro & Mini Torch ATEX - Instructions

Adobe

Wolf Micro & Mini Torch ATEX - Spec Sheet
