Worklight Floodlights - LED Floodlight, Zone 1 & 2 Hazardous Areas (ATEX)

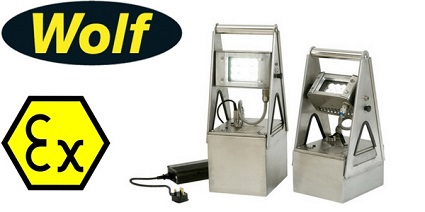

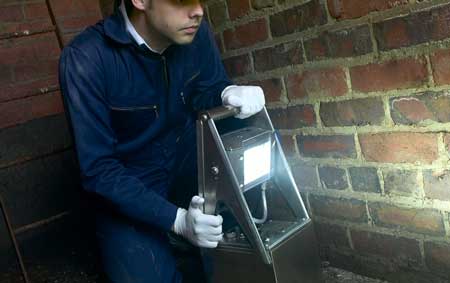

The Wolf ATEX Floodlight Worklite is a rechargeable high output LED floodlight, designed for use in harsh explosive atmosphere and hazardous area lighting applications. Wolf ATEX Worklite offers unique levels of light output, operational duration and robustness in a self contained battery powered lamp. The Worklite is ideal for use in remote floodlighting applications including Zones 1 and 2 hazardous areas for extended periods.

The Wolf ATEX Worklite is CE marked to the 94/9/EC ATEX Equipment Directive, allowing use in hazardous area Zones 1 and 2 potentially explosive gas, vapour, mist and dust atmospheres, where a T4 temperature class permits.

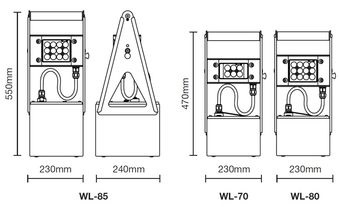

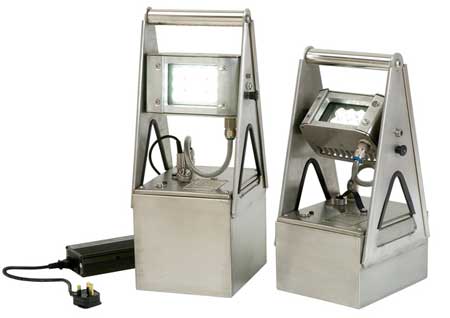

Three Wolf Worklite Floodlight models are available : the Wolf WL-85 with a 12 LED lamp head, giving over 1000 lumens output, the Wolf WL-70 with a 6 LED lamp head, giving over 500 lumens output and the Wolf WL-80 which combines the 12 LED lamp head with the smaller battery from the WL-70 giving a more portable unit still giving 1000 lumens of light output. All models deliver a piercing 30° beam, combined with a flood of lower level fringe light. The LED light source has a 25,000 hour life, highlighting the low maintenance benefits of the Wolf Worklite range.

Hazardous Area Zones Classification - Wolf Floodlights
Zone 1 - where flammable atmosphere is likely to occur during normal operation. Zone 2 - where flammable atmosphere is not likely to occur during normal operation and if it does will only exist for short period of time, typically less than 10 hours per year.


Wolf Safety Lamp LED Floodlight		Floodlight WL-70	Floodlight WL-80		Floodlight WL-85
Product description		High Power Rechargeable Battery Worklite
		6 LED	12 LED
Code		II 2 GD Ex e ib mb IIC T4 Ex tD A21 IP65 T135°C
Apparatus standards		EN60079-0, EN60079-7,EN60079-18, EN50020, EN61241-0, EN61241-1
Type of protection		‘e’ Increased Safety, ‘ib’ Intrinsic Safety, ‘mb’ Encapsulation, tD Enclosure Protection
Area of classification (Gases)		Zones 1 and 2, Gas Groups IIA, IIB, IIC
Temp. classification  (Gases)		T4
Area of Classification (Dusts)		Zones 21 and 22
Max Surface Temp. (Dusts)		T135°C
Ambient temperature		-20°C to +40°C
Certificate		Sira07ATEX3027
Enclosure		Stainless steel with aluminium LED lamp head
Lens		Toughened glass lens supplied with 3 anti-static lens guards
Beam Type		Spot beam with a flood of low level fringe light
Light source:	Type	High Power LED
	Power	6 x 3 Watt LEDs	12 x 3 Watt LEDs
	Output	up to 510 lm	up to 1020 lm
	Bulb Life	25,000 hrs plus (fitted for life)
Power source:	Pt. no.	W-218			W-235
	Battery Type	Rechargeable battery, sealed gel lead acid
	Volts	12v
	Capacity	18 Ah			33 Ah
	Life	up to 500 recharge cycles
Low Battery Indicator		Yes
Light duration	High	up to 12 hrs	up to 6hrs		up to 12 hrs
	Low	up to 24 hrs	up to 12 hrs		up to 24 hrs
Ingress protection		IP67 to EN60529: 1992
Weight (inc. battery)		16kg	16.5kg		23kg
Charger input		100 - 254 Vac
Recharge Time		8 Hrs			12 Hrs
Note: all information has been gathered under laboratory conditions, the user must regard the values given as approximate.
