Elcon Megarad Heat Shrink Cable Joint Kit (XLPE 12/20 (24)kV)

By Chris Dodds on 5th May, 2017

Follow @ThorneanDerrick

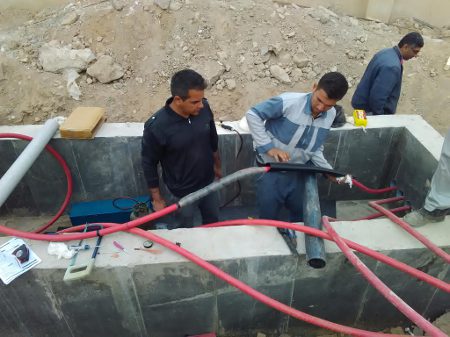

Pictured: Elcon Megarad Heat Shrink Cable Joint Kit (XLPE 12/20kV (24)kV)

Image: Morteza Sobhani (Expert Technical Support & Expert Installation of High Voltage Products)

Cable Type is 1-Stranded Circular Conductor (1 x 120mm2), 2-Semi-conductive Conductor Screen, 3-XLPE Insulation, 4-Semi-conductive Insulation Screen, 5-S.C Tape + Copper Wire Screen, 6-PVC Overall Sheath. 12/20 (24) KV. (Cu/SC/XLPE/SC/SCT/CWS/PVC).

Elcon Megarad

Elcon Megarad specialise in the design, testing and manufacture of LV MV HV Cable Joints & Cable Terminations utilising both heat shrink and cold shrink jointing technologies - full range of medium and high voltage joints and terminations tested to CENELEC, IEC, IEEE and ASTM standards and compatible with XLPE, PILC and EPR insulated cables, single and 3 core, with armour, copper tape screen and/or lead sheaths.
